Product introduction:SONY Embedded NFC Reader Module RC-S632/634
SONY Embedded NFC Reader Module RC-S632,RC-S634
RC-S632 and RC-S634 are Embedded NFC modules for PC, tablet and other consumer electronic devices.
These modules are registered by the NFC Forum Certification Program and support the communication with ISO/IEC 14443 Type A / Type B and FeliCa?.
Applications
· Logical access control · Online payment · P2P communication
· ID authentication · Loyalty service

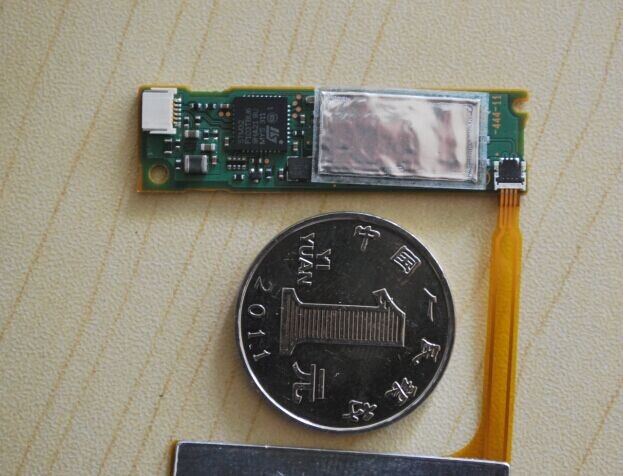

The RC-S632 module is suitable for incorporating into any lap top PC. The RC-S634 module has a Flexible Printed Circuit (FPC) antenna, which can easily be embedded into any tablet device.
Can communicate with any device conforming to the NFC Forum specifications.
Read/Write capability with FeliCa cards, FeliCa-compatible devices, and ISO/IEC 14443 Type A / Type B cards.
A PC/SC API is provided to access FeliCa cards and ISO/IEC 14443 Type A / Type B cards.
Supports application development for ISO/IEC14443 Type A / Type B cards, as well as FeliCa cards, FeliCa-compatible devices and Mobile Wallet Phones (Osaifu-Keitai).
For other widely-adopted operating systems, such as Android and Linux, reference source code written in C language (for easy porting) is provided to develop applications for ISO/IEC14443 Type A / Type B cards, as well as FeliCa card / FeliCa-compatible devices and Mobile Wallet Phones.
| RC-S632 | RC-S634 | |
|---|---|---|
| Regulatory compliance*1 |
?Japan: Radio law format specification number: AC-12034 ?USA: FCC ID: AK8RCS632U ?Canada: IC No.: 409B-RCS632U ?Europe: CE R&TTE (1999/5/EC) |
?Japan: Radio law format specification number: AC-12036 ?USA: FCC ID: AK8RCS634UA ?Canada: IC No.: 409B-RCS634UA ?Europe: CE R&TTE (1999/5/EC) |
|
Communication distance (per card and device)*2 |
Approx. 25mm | |
|
Communication speed (per card and device) |
106kbps, 212kbps, 424kbps | |
| API | PC/SC Version 2.0, Near Field Proximity API, FeliCa library | |
| Compatible cards |
?FeliCa Standard ?FeliCa Lite ?NFC Dynamic Tag (FeliCa Plug) ?Mobile FeliCa IC mobile phone ?Pico Pass ?MIFARE Classic ?MIFARE Ultralight / Ultralight C ?MIFARE DESFire / DESFire EV1 ?MIFARE Plus ?Topaz / JEWEL ?ISO/IEC 14443 Type A / Type B ?ISO/IEC 14443-4 Type A / Type B (T=CL) ?NFC Forum Type 1, 2, 3, 4A, 4B Tag |
|
|
Carrier frequency (per card and device) |
13.56MHz (±50ppm) | |
|
Operating temperature / humidity (no condensation)*3 |
-10°C~40°C / 20%~90% RH, 40C°~60C / 50% RH or lower |
|
|
Storage temperature / humidity (no condensation) |
-20°C ~+70C / 60% RH or lower | |
| Mass | Approx. 9.8g | Approx. 4.5g (Drive board 1.7g, Antenna 2.8g) |
| External dimensions (W x H x D) | Approx. 50mm x 2.7mm x 40mm |
Drive board : approx. 44mm x 2.5mm x 12mm Antenna : approx. 58mm x 0.5mm x 38mm |
| External interface | USB 2.0 (full-speed) | |
| Operating voltage | DC 5V (supplied via USB) | |
| Consumption current | Max. 140mA | Max. 160mA |
| *1 | For details of other regulatory compliance, please contact us directly, using the details at the foot of this page. |
|---|---|
| *2 | The communications distance depends on the operating environment. Under ideal conditions, this value is unaffected by electromagnetic waves or metallic substances. |
| *3 | Function assurance temperature. |
| Operating system |
Windows 8 / 8.1 32 bit (x86) / 64 bit (x64) Windows 8 / 8.1 Pro 32 bit (x86) / 64 bit (x64) Windows 8 / 8.1 Enterprise 32 bit (x86) / 64 bit (x64) Windows 7 Starter SP1 32 bit (x86) Windows 7 Home Basic SP1 32 bit (x86) / 64 bit (x64) Windows 7 Home Premium SP1 32 bit (x86) / 64 bit (x64) Windows 7 Professional SP1 32 bit (x86) / 64 bit (x64) Windows 7 Enterprise SP1 32 bit (x86) / 64 bit (x64) Windows 7 Ultimate SP1 32 bit (x86) / 64 bit (x64) Windows Vista Home Basic SP2 32 bit (x86) / 64 bit (x64) Windows Vista Home Premium SP2 32 bit (x86) / 64 bit (x64) Windows Vista Business SP2 32 bit (x86) / 64 bit (x64) Windows Vista Enterprise SP2 32 bit (x86) / 64 bit (x64) Windows Vista Ultimate SP2 32 bit (x86) / 64 bit (x64) Windows XP Home Edition SP3 Windows XP Professional SP3 32 bit (x86) Windows XP Media Center Edition 2005 (UR2) SP3 |
|---|---|
| Web browser |
Internet Explorer 11.0 Internet Explorer 10.0 Internet Explorer 9.0 Internet Explorer 8.0 Internet Explorer 7.0 Internet Explorer 6.0 SP3 |
|
?
|
If using a 64-bit operating system, this product is usable only with the 32-bit version of Internet Explorer. |
|---|---|
|
?
|
Successful operation is not guaranteed on all PCs using the recommended operating systems. |
|
?
|
The performance of this product depends on the specific combination of hardware and software used, even if the conditions in the previous table are satisfied. |
